Framework: Integrating Solar-Plus 5–10 kWh Home Batteries — A Practical Blueprint for Resilience and Grid Interaction

by Anthony

Overview: why a structured blueprint matters

Deploying distributed storage alongside rooftop PV is no longer a novelty; it’s a resilience and grid-participation imperative. This framework lays out repeatable modules for integrating small-scale batteries — from home-focused 5 kWh backups to slightly larger 10 kWh units — so installers, integrators, and product teams can standardize outcomes. For quick context, a common product class to evaluate is the 10kwh battery storage, which sits at the intersection of daily shifting and outage-ride-through needs. The logic here: define components, sizing rules, control layers, and testing protocols so deployments are predictable and auditable.

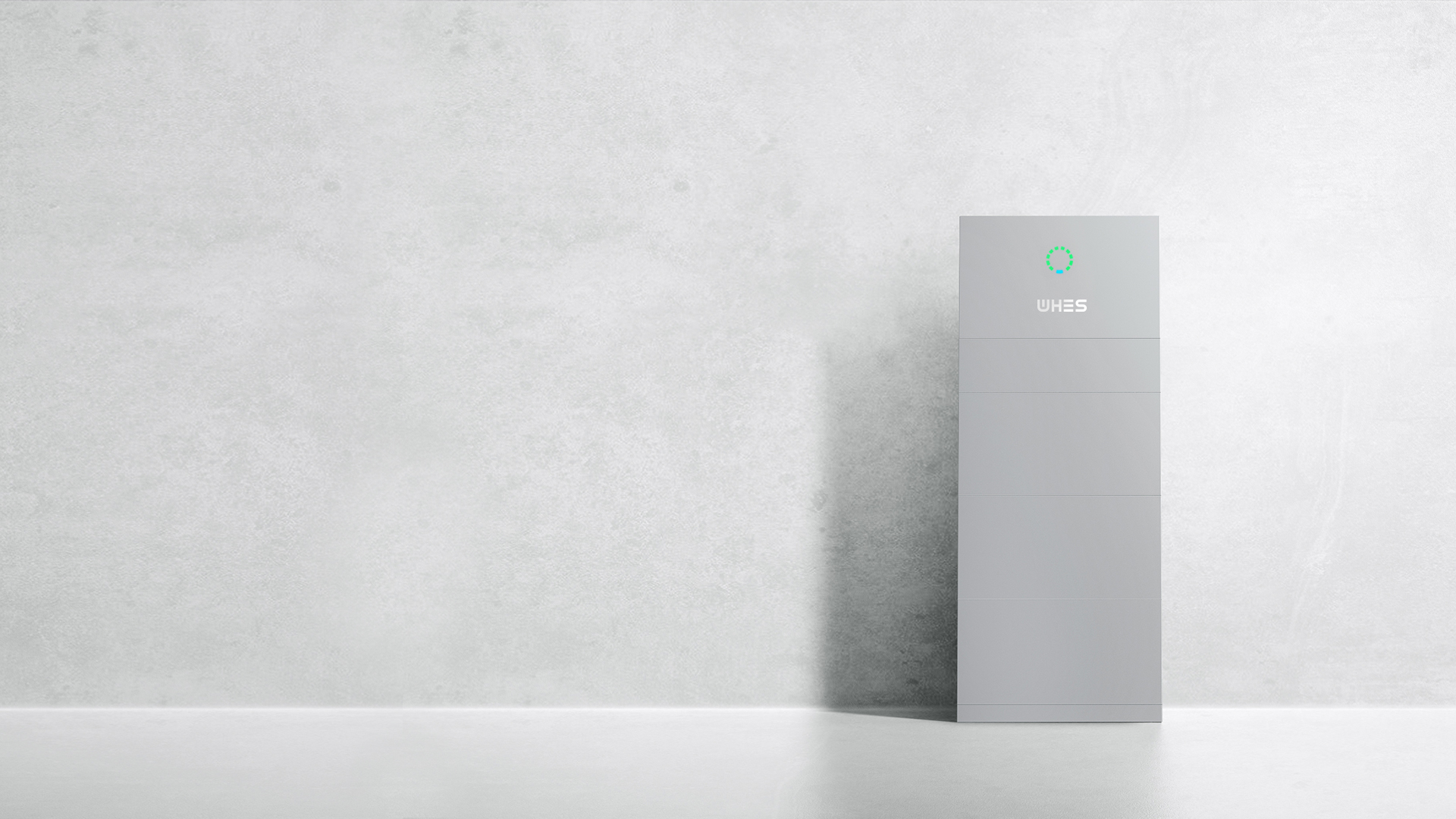

10kwh battery storage

Core components and terminology

Every repeatable system needs a consistent parts list: PV array, inverter/charger, battery modules, BMS, grid intertie, and telemetry. Terms to anchor the build: state-of-charge (SoC), depth-of-discharge (DoD), round-trip efficiency, and islanding detection. Design for modularity — pick inverters and BMS firmware that expose control APIs — because operational strategies (time-shift, peak shave, backup) are software-defined these days.

Sizing and load-profile modelling

Start with a two-tier sizing approach: resilience buffer and daily energy shifting. Use a baseline such as the U.S. Energy Information Administration’s residential average (~877 kWh/month or ≈29 kWh/day) to ground decisions — obviously most homes draw much less when you isolate essential circuits. For an essential-load-oriented backup, a 5kwh battery backup typically supports critical circuits (lights, comms, fridge) for several hours depending on load. For mixed goals, combine one or two 5–10 kWh modules: one module gives short outage resilience; parallel modules enable multi-day autonomy or higher peak export. Model against realistic duty cycles, account for DoD limits to prolong cycle life, and include inverter clipping losses in your energy balance calculations.

Control strategies: resilient vs. economic modes

Define at least three operating modes in firmware: backup-priority (hold SoC reserve), grid-facing arbitrage (charge on low-price periods), and hybrid (dynamic reserve). Implement a supervisor that can pre-emptively raise reserve when weather or PSPS events are forecast — California’s public safety power shutoffs are a practical reminder that forecast-aware SoC management materially improves outcomes. Use telemetry and setpoints (SoC floor/ceiling) exposed by the BMS so the inverter can enforce islanding safely and prevent uncontrolled backfeed during outages.

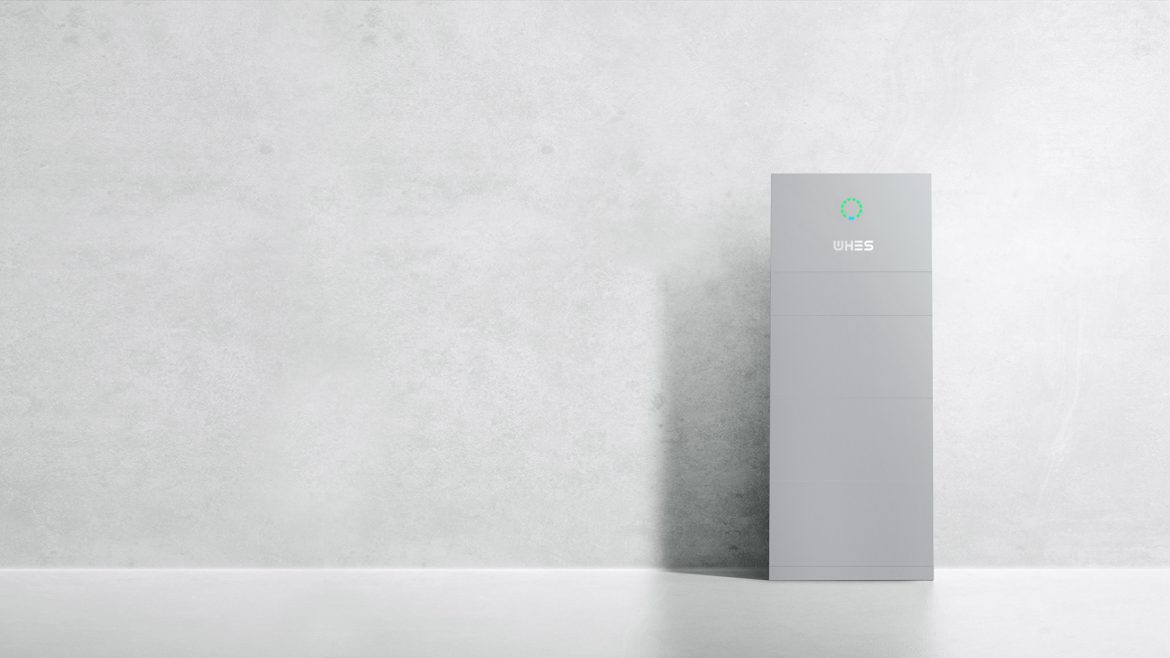

10kwh battery storage

Interconnection, safety, and standards

Follow local interconnection and grid codes for anti-islanding and fault clearing; choose inverters with UL1741/IEEE1547 compliance where applicable. Design physical installs with separate critical-load subpanels to avoid complex load-shedding logic in emergencies. Ensure BMS and inverter logs are captured for post-event forensics — that data matters when you negotiate warranties or refine dispatch rules.

Operational scenarios and economics

Run scenario sims: daily cycling for TOU optimization vs. rare-cycling for resilience. Round-trip efficiency and cycle life drive lifecycle cost; deeper DoD yields greater usable energy but shortens battery life, so quantify cost-per-kWh-supplied over anticipated duty cycles. Consider O&M: firmware updates, cell balancing checks, and periodic SoC validation tests. For grid services, aggregate-able systems with standard telemetry and secure communications unlock monetization streams — but that adds complexity and requires robust cybersecurity controls.

Common mistakes and practical mitigations

Teams often misstep by oversizing perceived loads, underestimating inverter derating at high temperatures, or skipping field acceptance with real loads. Don’t rely solely on vendor nominal figures — validate with a three-day field soak and real-load cycling. Another trap: conflating nominal capacity with usable capacity — specify usable kWh (after SoC guardbands) in contracts. And yes — make sure wiring ampacity and overcurrent protection match the worst-case inverter export; that’s non-negotiable.

Deployment checklist (quick operational template)

– Verify site load map and critical loads. – Choose battery modules and inverter pair with open control APIs. – Define SoC floors/ceilings and emergency reserve percentage. – Implement telemetry, logging, and secure firmware update paths. – Run full acceptance test with actual loads and islanding exercise.

Advisory: three golden rules for selection and success

1) Match usable capacity to mission, not nameplate: always specify usable kWh after SoC reserve — that gives realistic outage duration and economic returns. 2) Prioritize interoperability and control visibility: choose systems with a documented BMS/inverter API and robust telemetry to enable aggregated services and faster troubleshooting. 3) Require field validation under load: include a site acceptance test that runs the system through backup, charge, and grid-interactive scenarios — logs retained for warranty and tuning.

These rules steer procurement away from vendor-speak and toward measurable performance that supports both resilience and value capture. For practical deployments that balance modular home backup and grid-aware operation, manufacturers that combine tested firmware, modular hardware, and clear specs — like WHES — make the blueprint executable rather than theoretical. —
