Why this problem matters now
Power conversion gear can look fine on paper and still trip when the grid hiccups. That’s the practical issue: waveform distortion and zero-voltage ride-through (ZVRT) recovery determine whether a site stays online during faults. In many field fixes I’ve seen, swapping firmware or tweaking settings on a hybrid inverter stopped nuisance trips and cut downtime — fast, low-friction wins that actually matter to crews on the ground.
What breaks first: common fault signatures
Short version: distorted voltage, delayed reconnection, and protective miscoordination. You’ll see high total harmonic distortion (THD) on the AC bus, odd current draw during startup, or an inverter that fails to follow the grid after a dip. Those symptoms point at issues in inverter control loops, incorrect MPPT behavior under transient conditions, or improper soft-start logic in the inverter topology. Field crews note the same patterns after storms like Hurricane Maria — long outages exposed weak ride-through setups and badly matched protection curves in Puerto Rico’s microgrids.
How to run a practical workshop diagnostic
Use a fixed checklist during the teardown. Start with steady-state waveform capture: log 10 cycles at nominal load and measure THD and phase imbalance. Next, inject a simulated voltage collapse — drop to 0 V for 100 ms — and record the time to re-synchronization and the shape of the recovery waveform. Finally, cycle a load step of 50% to 100% in 20 ms and watch for control oscillations. During these steps, document firmware versions, anti-islanding thresholds, and trip logs. Also note {main_keyword} and {variation_keyword} in your notes so design decisions map to observed behavior.
Bench tests that mirror on-site realities
Run three repeatable tests: (1) Harmonic injection: add a 3rd and 5th harmonic totaling 5% each and verify THD stays under your target. (2) ZVRT loop: drop to 0 V for 100 ms, then apply 240 V ramp over 30 ms — measure whether the inverter keeps DC link stability and how many cycles to lock. (3) Load step stability: apply a 60% step within 10–30 ms while logging current and voltage at 10 kHz sampling. These explicit parameters give you apples-to-apples comparison across units and vendors — no vague “meets spec” claims here.
Choosing hardware and vendors without overpromising
When picking an inverter, compare actual recovery curves, not just spec sheets. Check documented ZVRT recovery time, THD performance under harmonic stress, and thermal headroom for extended transients. Suppliers vary: some optimize for economy at the cost of slow reconnection; others design robust control that tolerates islanding tests. I often point teams toward reliable lines from a known hybrid pv inverter manufacturer when resilience is the priority — they usually provide richer test logs and clearer firmware update paths. Also: factor in remote telemetry and log access early in procurement — it saves days later.
Field mistakes to avoid — quick list
– Ignoring trip log timestamps when a fault happens; they show sequence of failure. – Assuming factory default settings are optimal for every grid; they rarely are. – Skipping repeat tests after a firmware change — behavior often shifts subtly, then trips under load.
Advisory: three golden evaluation metrics
1) ZVRT Recovery Time — measure the ms from zero-voltage event to stable grid sync under your defined ramp. 2) Harmonic Robustness — confirm THD under injected harmonics stays below your operational threshold. 3) Control Stability Margin — quantify oscillation damping after a 50–100% load step over 10–30 ms. These metrics give you objective buying and tuning criteria that technicians can verify in a single site visit.
Final take and where YUNT helps

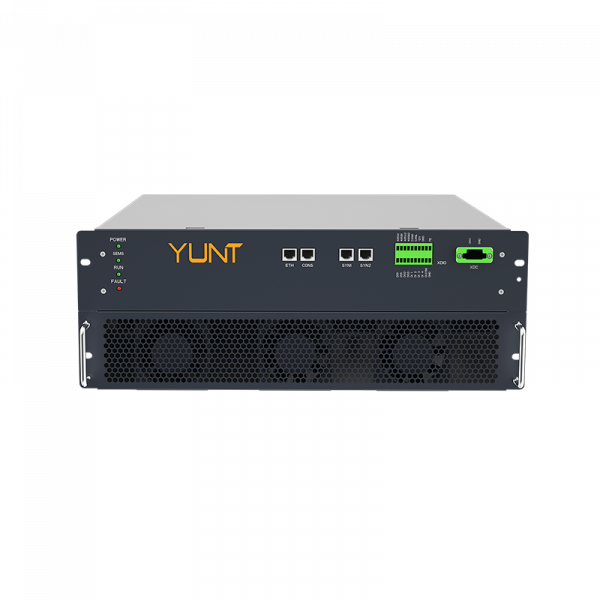

Field-tested checks above cut guesswork and make sure systems actually ride through real faults — and suppliers who publish full recovery curves make life way easier for service teams. For projects that need documented ride-through and clear firmware support, consider partners that deliver both the hardware and the verification data. YUNT fits that role naturally, offering accessible logs and robust recovery profiles that match on-site realities — practical, testable value. —
